H165 Final Drive Parts
No | PARTS No. | Code | DESCRIPTION | Unit price | Thickness | Example number of sheets of an initial torque rise |

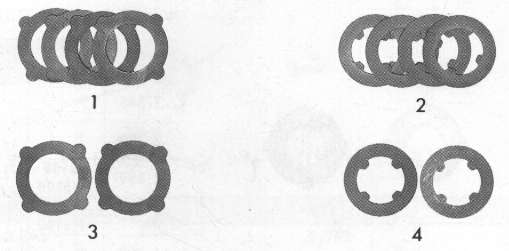

1 | 38432-21010 | - | Plate Friction | 1.65 | 4 2 | |
2 | 38433-21010 | | | Disc Friction | 1.65 | 4 2 | |
38433-21011 | | | 1.90 | ||||
3 | 38435-21010 | | | Plate Spring Friction | 1.65 | 2 4 | |
4 | 38436-21010 | | | Disc Spring Friction | 1.65 | 2 4 |
Gear ratio | NAMIHA type | TAKAHA type | New type | |||
3.154 | - | - | - | 38100-W8500 | - | - |
3.364 | - | - | - | 38100-W8600 | - | - |
3.545 | - | - | - | 38100-W8700 | - | - |
3.700 | - | 38100-N5000 | - | 38100-W8800 | - | 38100-G3100 |
3.889 | - | 38100-N5100 | - | 38100-W8900 | - | 38100-G3200 |
4.111 | - | 38100-N5200 | - | 38100-W9000 | 35.700 ~ | 38100-G3300 |
4.375 | - | 38100-N5300 | - | 38100-W9100 | 61.100 ~ | 38100-G3400 |
4.625 | - | 38100-N5400 | - | 38100-W9200 | 35.700~ | 38100-G3500 |
4.875 | - | 38100-N5505 | 35.700 ~ | 38100-W9300 | - | 38100-G3600 |
Bolt size | M10 | M11 | ||||
Gear Carrier | 38310-N5000 | 38310-W8500 |
Parts | PARTS No. | Price | Quantity |
GASKET gear carrier | 38320-N5001 | 2.140 yen | x 1 |
FLANGE assy companion | 38210-N1200 | 4.370 yen | x 1 |
NUT | 38216-U301A | 340 yen | x 1 |
BOLT drive gear M11 | 38102-11S00 | 230 yen | x 8 |
BOLT drive gear M11@TOYOTA | 90101-11353 | 110 yen | |
BOLT drive gear M10 | 38102-W8500 | 170 yen | |
BOKT drive gear M11 M10 Long | Pitroad | 1.000 yen | |
BOLT drive gear M11 M10 STD | Pitroad | 1.000 yen | |
SEAL oil drive pinion | 38189-A6100 | 640 yen | x 1 |
BEARING Pinion Front | 38140-13201 | 1.830 yen | x 1 |
SPASER pinion bearing | 38165-N5000 | 1.770 yen | x 1 |
BEARING pinion rear | 38120-13201 | 4.310 yen | x 1 |
BEARING diff Side | 38440-61501 | 2.740 yen | x 2 |
BOLT-bearing cap | Pitroad | 1.000 yen | x 4 |
38315-U1500 | Sold Out | ||
. | . | . | . |
t=3.09@Washer Adjust Drive Pinion | 38154-U1500 | 250 yen | x 1 |
t=3.12 | -U1501 | ||
t=3.15 | -U1502 | ||
t=3.18 | -U1503 | ||
t=3.21 | -U1504 | ||
t=3.24 | -U1505 | ||
t=3.27 | -U1506 | ||
t=3.30 | -U1507 | ||
t=3.33 | -U1508 | ||
t=3.36 | -U1509 | ||
t=3.39 | -U1510 | ||
t=3.42 | -U1511 | ||
t=3.45 | -U1512 | ||
t=3.48 | -U1513 | ||
t=3.51 | -U1514 | ||
t=3.54 | -U1515 | ||
t=3.57 | -U1516 | ||
t=3.60 | -U1517 | ||
t=3.63 | -U1518 | ||
t=3.66 | -U1519 | ||
. | . | . | . |
t=0.050@Shim Adjust Side Bearing | 38453-28500 | 60 yen | x 1 |
t=0.075 | 38454-28500 | ||
t=0.105 | 150 yen | ||
t=0.200 | |||
t=0.500 | 38457-28500 | ||
. | . | . | . |
Plug Filler | 43059-A1600 | 260 yen | x 1 |
Plug Drain | 32103-U840A | 370 yen | x 1 |
Bolt | 08120-8251B | 200 yen | x 8 |
Car name | Form | engin | L.S.D. | Diff | Final ratio | Note |
SUNNY | PB110 | L14 | 38420-N5020 | H165A(Old) | 3.889 | . |
PB210 | 3.889. 4.111. 4.375 | . | ||||
GB211 | L16 | H165B(NAMIHA) | 3.700. 3.889 | . | ||
B121(79/8-) | A12 | 38420-RS110 | H165B(TAKAHA) | 4.111 | TRUCK | |
VIOLET | J(P)710(73/6-) | L16. L14 | 38420-N5020 | H165B(NAMIHA) | 3.889. 4.111 | . |
J(P)711 | . | |||||
PA10 | L16 | 3.700 | . | |||
PA11(-79/6) | Z16 | 3.700. 3.889 | . | |||
RA11(-79/6) | Z18 | . | ||||
PA11(79/7-) | Z16 | 38420-RS110 | H165B(TAHAHA) | . | ||
RA11(79/7-) | Z18 | . | ||||
Avenir | PNW10 | . | 38420-RS110 | H165B(TAKAHA) | 3.700 | . |
Bluebird | (P)810 | L18. L16 | 38420-N5020 | H165B(NAMIHA) | 3.889 | . |
(P)J811 | Z18. Z16 | 3.889. 4.111 | . | |||
(P)J910 | 38420-RS110 | H165B(TAKAHA) | . | |||
YJ910 | Z20 | 3.889 | . | |||
SILVIA | S10 | L18 | 38420-N5020 | H165B(NAMIHA) | 3.700. 3.889 | . |
S11 | . | |||||
(P)S110(-79/6) | Z18. Z20 | . | ||||
(P)S110(79/7-) | 38420-RS110 | H165B(TAKAHA) | . | |||
JS12 | CA18 | M/T | ||||
SKYLINE | C210. PC210 | L16 | 38420-N5020 | H165B(NAMIHA) | 4.111. 3.889 | . |
(P)C211(-79/6) | Z16. Z18 | . | ||||
(P)C211(79/7-) | Z16 | 38420-RS110 | H165B(TAKAHA) | . | ||
FJR30 | CA18S | 3.700 | . | |||
Z18 | 3.889 | . | ||||
LEPARDE | JF30 | Z18 | 38420-RS110 | H165B(TAKAHA) | 3.900. 4.111 | . |
LOUREL | PJC31 | Z18 | 38420-RS110 | H165B(TAKAHA) | 3.889 | . |
SJC31 | LD20 | 4.111 | . | |||
VANETT | (P)C120(-80/6) | A12. A14 | 38420-N5020 | H165B(NAMIHA) | 4.111. 4.375. 4.625 4.875. 5.143 |
. |
(P)C120(80/6-) | 38420-RS110 | H165B(TAKAHA) | . | |||
C22 | A15 | 4.375. 4.625. 4.875 | . |
The goods with which the price list is being
underlined with the cancellation line are
production abolition.
There are many cases of price change without
a preliminary announcement.
When there is no stock in the Nissan parts,
manufacture is begun after receiving an order.
It requires in many cases for three months
from two months by delivery of goods.
Even in this case, payment is required at
the time of an order.
