B210(74/9-). B211. HB211. B310. HB310. PB310.
H150 Final Drive Parts
NISMO H150 Limited Slip Diff
B210(74/9-). B211. HB211. B310. HB310. PB310.
| Form | PARTS No. | Price | Offset | A size | B size | Side gear SERESHON |
Pinion Mate GearNumber |
Bolt Drive Gear Size (number) |
Gear ratio range |
Note |
| H150 (usually a model) |
38420-RS210 |
|
27 | 72.37 | 95 | 22x21T | 4 | M10x1.25(8) | 3.889 - 4.111 | . |
| H150A (Strengthened type) |
3.545 - 4.625 | They are those of "A" with a mark to a gear Carrier. |
| No | PARTS No. | Code | DESCRIPTION | Unit price | Thickness | Number | Example number of sheets of an initial torque rise |
| 2 | 38433-RS210 | − | Disc Friction | 1.000 yen | 1.60 | 6 | → 4 |
| 1 | 38432-RS210 | − | Plate Friction | 900 yen | 1.60 | 4 | → 4 |
| 3 | 38435-RS210 | - | Plate Spring Friction | 1.000 yen | 1.60 | 2 | → 2 |
| 4 | 38436-RS210 | − | Disc Spring Friction | 1.60 | - | → 2 |

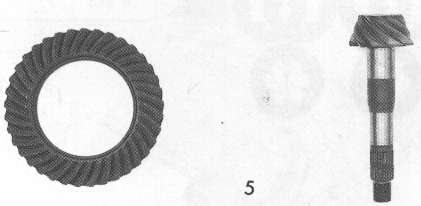

| Gear ratio | H150 usually a model | H150A Strengthened type | H150A NISMO type | |||
| 3.545 | - | - | - | 38100-H9000 | - | - |
| 3.700 | - | - | - | 38100-H7000 | - | - |
| 3.889 | - | 38100-H5000 | - | 38100-H7100 | - | - |
| 4.111 | 66.800 円 | 38100-H5100 | - | 38100-H7200 | - | - |
| 4.250 | - | - | - | - | 38100-A1253 | |
| 4.375 | -. | - | - | - | 38100-A1254 | |
| 4.625 | - | - | - | - | 38100-A1255 | |
| Gear Carrier | 38310-H5000 | 38310-H9500 | ||||
| 水平オフセット＝18mm | キャリアー水平オフセット＝20mm | |||||
| Parts | PARTS No. | Price | Quantity |
| FLANGE assy companion | 38210-H5003 | Sold out | x 1 |
| GASKET Gear Carrier | 38320-H5001 | Sold out | x 1 |
| Pitroad | 1.200 yen | ||
| BOLT drive gear | 38102-G0300 | Soid out | x 8 |
| NUT | 38216-U301A | 340 yen | x 1 |
| SEAL-OIL drive pinion | 38189-A6100 | 640 yen | x 1 |
| BEARING pinion front | 38140-04100 | 2.210 yen | x 1 |
| SPASER pinion bearing | 38165-N5000 | 1.770 yen | x 1 |
| BEARING pinion rear | 38120-18000 | 2.540 yen | x 1 |
| BEARING diff side | 38440-H1000 | x 2 | |
| Pitroad | 2.750 yen | ||
| BOLT bearing cap | Pitroad | 1.000 yen | x 4 |
| 38315-H7000 | Sold Out | ||
| . | . | . | . |
| t=2.74 Washer Adjust Drive Pinion | 38154-G0400 | - | |
| t=2.77 | -G0401 | ||
| t=2.80 | -G0402 | ||
| t=2.83 | -G0403 | ||
| t=2.86 | -G0404 | ||
| t=2.89 | -G0405 | ||
| t=2.92 | -G0406 | ||
| t=2.95 | -G0407 | ||
| t=2.98 | -G0408 | ||
| t=3.01 | -G0409 | ||
| t=3.04 | -G0410 | ||
| t=3.07 | -G0411 | ||
| t=3.10 | -G0412 | ||
| t=3.13 | -G0413 | ||
| t=3.16 | -G0414 | ||
| t=3.19 | -G0415 | ||
| t=3.22 | -G0416 | ||
| t=3.25 | -G0417 | ||
| . | . | . | . |
| t=0.05 Shim Adjust Side Bearing | 38453-H1000 | − | |
| t=0.07 | 38454-H1000 | ||
| t=0.10 | 38455-H1000 | ||
| t=0.20 | 38456-H1000 | ||
| t=0.50 | 38457-H1000 |
| Car name | Form | engin | Diff | Final ratio | L.S.D. |
| SUNNY | B210(74/9-) | A12 | H150 | 3.889 | 38420-RS210 |
| B211 | |||||
| HB211 | A14 | 3.889. 4.111 | |||
| B310 | A12 | 3.889 | |||
| HB310 | A14 | ||||
| PB310 | A15 | H150A | 3.700 | ||
| VIOLET | A10 | A14 | 3.889 | ||
| A11 |
The goods with which the price list is being
underlined with the cancellation line are
production abolition.
There are many cases of price change without
a preliminary announcement.
When there is no stock in the Nissan parts,
manufacture is begun after receiving an order.
It requires in many cases for three months
from two months by delivery of goods.
Even in this case, payment is required at
the time of an order.
