Transmission Parts
F5C56A

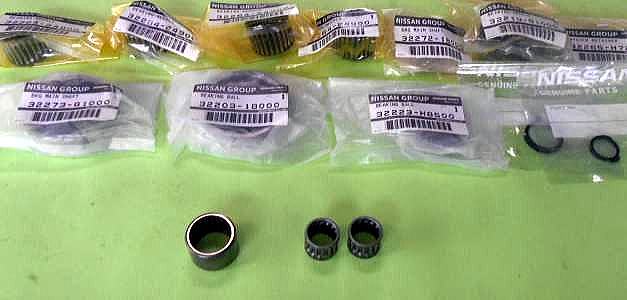

BEARING
No Parts Number Price QTY Description
1 BEARING-main driver gear 32203-18000 870 yen x 1 .
2 RING-snap,main drive gear 32204-18000 230 yen
3 BEARING-pilot main shaft 32272-18000 670 yen x 1 .
4 BEARING-needle thrust 32265-H7200 1.010 yen x 1 from '73-8
WASHER-thrust synchronizer 32265-18000 ↑ up to '73-7
BALL-steel 32720-14600
5 BEARING-needle main shaft 32264-24900 680 yen x 4 .
6 BEARING-ball,main shaft 32273-G1000 2.290 yen x 1 .
7 BEARING-ball,counter shaft 32223-H8500 1.000 yen x 1 .
32273-H7200 ↑
8 RING-snap,counter 1st 00922-11700 210 yen 4 speed
32221-H7201 Sold out 5 speed
9 BEARING-needle counter shaft 32219-G1000 960 yen x 1 .
10 BEARING-needle reverse idler Pitroad 1.000 yen x 2 .
32283-H7201 Sold out
11 BEARING-needle extension rear Pitroad 1.500 yen x 1 .
32351-H7200 Sold out
12 . . . . .
13 BEARING-clutch release Pitroad 3.000 yen x 1 standard
30502-21000 ↑
30502-69F10 3.300 yen
30502-14601 3.940 yen NISMO

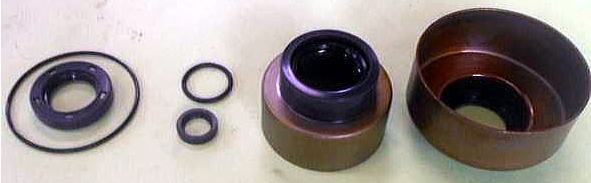

OIL SEAL
No Parts Number Price QTY Description
14 COVER Assy front transmission Pitroad 25.000 yen x 1 Steel
32110-H1000 Sold out Normal
15 SEAL oil front cover Pitroad 1.400 yen x 1 .
C2113-H3100 Sold out
16 RING-O front cover 32112-18000 320 yen x 1 .
17 . . . . .
18 ring-O striking rod 32848-24900 140 yen x 1 .
19 ring-O striking guide 32858-U6700 140 yen x 1 .
20 . . . . .
21 SEAL oil rear extension C2136-G1001 1.090 yen x 1 60Φ
C2136-H8900 1.100 yen 77Φ



Others
No Parts Number Price QTY Description
13 BEARING-clutch release. Pitroad 3.000 yen x 1 standard
30502-21000 ↑
30502-69F10 3.300 yen
30502-14601 3.940 yen NISMO
22 . . . . .
23 SLEEVE-bearing clutch release 30501-H1000 1.420 yen x 1 standard
30501-H8560 1.860 yen 4.5mm long
24 SPRING-retum clutch release 30533-H1001 570 yen x 1 .
25 LEVER-with drawal clutch 30531-H1000 2.540 yen x 1 .
26 COVER-dust with drawal fever 30542-H1000 510 yen x 1 .
27 PLUG thread 00931-1081A 210 yen x 1 Steel
Pitroad 1.000 yen Plastic
28 . . . . .
29 WASHER thrust counter t=2.00 Pitroad 1.800 yen x 1 Aluminum
　　　　　　〃　　　　t=2.30〜2.35 32224-H7200 610 yen Brass
　　　　　　〃　　　　t=2.35〜2.40 32224-H7201
　　　　　　〃　　　　t=2.40〜2.45 32224-H7202
　　　　　　〃　　　　t=2.45〜2.50 32224-H7203 Sold out
　　　　　　〃　　　　t=2.50〜2.55 32224-H7204 610 yen
　　　　　　〃　　　　t=2.55〜2.60 32224-H7205 Sold out
30 FORK-shift 2nd & 3rd, 4th & 5th 32805-18000 1.580 yen x 2 .
32805-H7200 ↑
31 FORK-shift 1st & reverse 32819-H7200 Sold out x 1 .
32 PIN-retaining 32293-73200 60 yen x 5 .
33 RING-synchro 32611-H7200 Sold out x 5 .
34 . . . . .
35 PLATE ASSY adaptor Pitroad 36.000 yen x 1 for Race
32137-H7200 Sold out Normal
36 PLUG drain 08931-44210 Sold out x 1 .
37 SPRING poppet 32830-18000 60 yen x 3 .
38 BALL steel 32829-26760 60 yen x 3 .
39 PLUNGER inter look 32832-18000 110 yen x 2 .
40 . . . . .
41 WASHER-thrust reverse pdler Pitroad 1.950 yen x 1 Aluminum
32284-H7201 Sold out Brass
42 NUT-hex Pitroad 1.600 yen x 1 .
32354-H7201 Sold out
43 PLUG return 32853-E9300 170 yen x 1 Steel
32853-24900 130 yen Plastic
44 RING-E 7S 32846-24900 120 yen x 1 .
45 Breather Assy Pitroad 1.600 yen x 1 RAN MAX
38322-H7200 Sold out .
46 BOLT-hex rear extension Pitroad 350 yen .x 8 Stainless
08120-8xx10 Sold out Steel
47 . . . . .
48 BUSH controal lever 32849-H1010 310 yen x 2 .
Pitroad 1.000 yen Aluminum
49 BUSH controal lever head 32861-N4200 230 yen x 1 .
32861-24900 ↑
50 BOOT rubber control lever 32862-G1200 .350 yen x 1 .
51 SWITCH ASSY reverse lamp 32005-K102A 3.370 yen x 1 .
Switch lid Pitroad 1.000 yen Plastic
52 Insulator Assy'-engine mounting,rear 11321-H1000 3.100 yen x 1 .


スチール製フロントカバー 強化センタープレート
価格　25.000円 (税別) 価格　36.000円 (税別)




全国の日産部品にリンクします
直結５速ミッション(F5C56A)パーツ価格と生産廃止が確認できるようにと掲載してあるもので販売が目的では御座いません。したがって日産純正部品のみのご注文はお断りします、チューニングパーツ購入と一緒に同封発送の場合に限り在庫分のみ販売致します。欠品部品はご自身で日産部品でお買求め頂いております。
